[RFC] LaTeX: choose some default for ``\\sphinxnonalphabeticalgroupname`` (xindy indexing)

Open

#5,252 opened on Aug 1, 2018

View on GitHub
 (1 comment) (0 reactions) (0 assignees)Python (5,625 stars) (1,985 forks)batch import
builder:latexhelp wanted

Description

1.8 will have latex_use_xindy option.

With makeindex the index contains Symbols and Numbers entries. With xindy I currently did not separate them (for lack of expertise) and they are merged into a single heading called provisorily Non-alphabetical: https://github.com/sphinx-doc/sphinx/blob/53ea40555f1a71802a45d06f4be8da367338526b/sphinx/writers/latex.py#L679-L695

This is thus the \sphinxnonalphabeticalgroupname macro which contains the translatable Non-alphabetical string. Here is for example how it currently looks like with Sphinx own documentation:

capture d ecran 2018-08-01 a 18 36 47

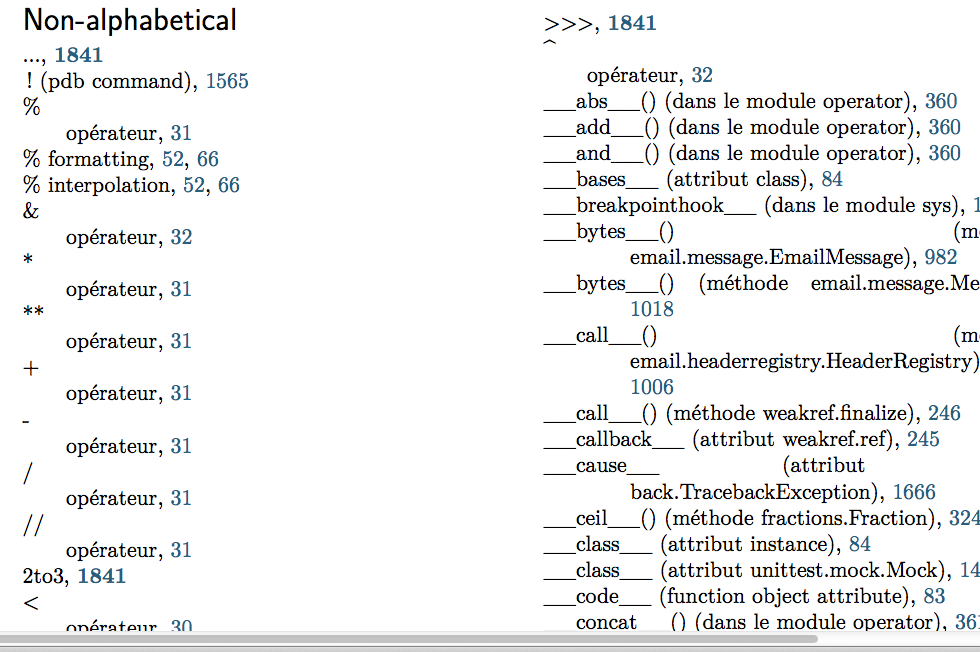

Here is how it looks like in a buid I made of CPython docs (library.pdf), in French, which uses xelatex hence xindy:

capture d ecran 2018-08-01 a 18 46 18

Suggestions are welcome for better choice than Non-alphabetical.

I am not sure how to separate into Symbols and Numbers. It is quite possible to leave the default to an empty string.

remark: the legacy "Symbols" is not quite appropriate as the example of CPython docs shows. Here is from official CPython build in English (which uses pdflatex+makeindex):

capture d ecran 2018-08-01 a 18 48 36

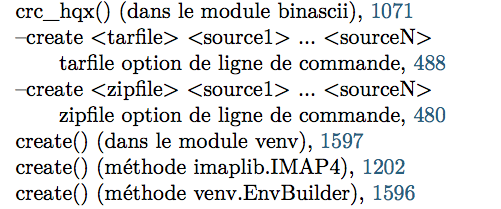

edit remark: with xindy (and current way of Sphinx to use it) names like -create are indexed ignoring the initial hyphens, here is how it looks like in the index of library.pdf in French (xelatex+xindy):

capture d ecran 2018-08-01 a 19 08 54

In contrast with legacy makeindex as in screenshot above they end up in the "Symbols" group. (which sounds bad).

In both cases indexed terms like __abs__() end up in the Symbols/Non-Alphabetical group. With xindy, it would be possible easily to configure it to move such __abs__() indexed term in A letter group rather than Symbols/Non-Alphabetical group.

  • Sphinx version: 1.8+
